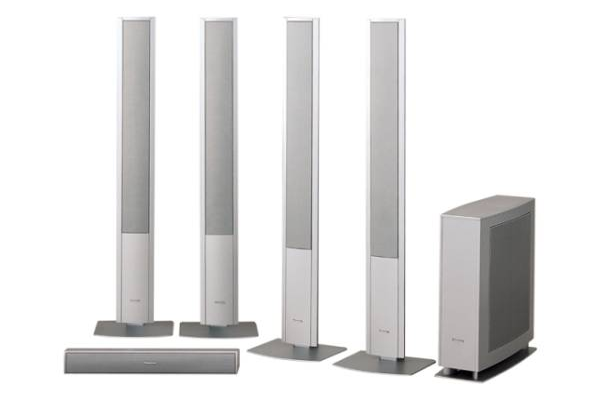

Garso kolon?li? sistema Panasonic SB-TP50

Front surround part SB-FS50
Type 2 Way 3 speaker sealed
Speaker woofer two 8cm cone type ×Tweeter: 2.5cm semi-dome type × 1 this
Impedance 6Ω
Permissible input 200W (MUSIC), 100W (DIN)
Output sound pressure level 81dB / W (1.0m)
Crossover frequency 3.5kHz
Play frequency 140Hz ~ 50kHz (-16dB)
180Hz ~ 45kHz (-10dB)
Dimensions Width of about 240mm × height 1108mm × depth 211mm (including stand)
Weight (approx.) 5.5kg (1 pcs)
The repulsive-type magnetic circuit ultra-thin unit mounting by Key Features ? Tallboy type speaker adopted ? neodymium magnet

Center speaker unit part SB-PC50
Type 3-way 5 speaker bass-reflex
Speaker woofer: This 5cm cone type × 4
Tweeter: 2.5cm semi-dome type × 1 this
Impedance 6Ω
Permissible input (IEC) 200W (MUSIC), 100W (DIN)
Output sound pressure level 81dB / W (1.0m)
Crossover frequency 3.8kHz, 5kHz
Play frequency 130Hz ~ 50kHz (-16dB)
150Hz ~ 45kHz (-10dB)
Dimensions (approx.) Width of about 430mm × height 64mm × depth 100mm
Mass (excluding accessories) 1.8kg
Key Features ? 5cm woofer four and staggered drive

Subwoofer unit part SB-W50
Type 1 way 2 speaker bass-reflex type
Speaker woofer 14cm this cone type × 2(stream port)
Impedance 6Ω
Permissible input 200W (MUSIC), 100W (DIN)
Output sound pressure level 81dB / W (1.0m)
Play frequency 32Hz ~ 500kHz (-16dB)
38Hz ~ 400kHz (-10dB)
Dimensions Width of about 160mm × height 450mm × depth 408mm
Weight (approx.) 6.4kg
Key Features ? Slim design ? aero stream port installed
