Panel

LED LCD

Bright Panel

Screen Resolution

1,920 (W) x 1,080 (H)

Panel Drive

400 Hz BMR

Picture Mode

Dynamic/Normal/Cinema/True Cinema/Custom

HDR*1

—

Contrast

Hight Contrast

Colour Space

—

4K Studio Master HCX+/HCX

—

Local Dimming

—

Adaptive Backlight Dimming

Y

THX Certified Display

—

4K Pure Direct

—

isf Mode

—

3D

—

Surround

V-Audio

Speakers

Full Range x 2

Speaker Output

20 W (10 W x 2)

Dolby Audio*2

Y

Sound Mode

Standard/Music/Speech/User

my Home Screen

Y

Info Frame

—

my Stream*3

—

Voice Assistant

—

Voice Guidance

Y

EPG

Y

On Screen Display Menu Languages

27 Languages*11

Twin HD Tuner / HD Triple Tuner

— / —

Unique Processing Engine

—

Wireless LAN Built-in

Y

Panasonic Media Center (App)

—

TV Anywhere*4

—

In-House TV Streaming

Y (Client)

Panasonic TV Remote Apps

Y

Swipe & Share

Y

Smart Calibration

—

Internet Apps

Y

Web Browser*5

Y

Easy Mirroring

Y

DLNA

Y (RUI2.0/DTCP-IP/DMP/DMR/DMS)

Bluetooth*6

—

APT-X*7

—

Media Player

Y

Support Format

AVI/MKV/WMV/MP4/M4v/FLV/3GPP/VRO/VOB/TS/PS, MP3/AAC/WMA Pro/FLAC/WAV, JPEG

HbbTV

Y

Teletext Reception

1000P

USB-HDD Recording (w/ Rewind live TV)

—

Multi Window

PAT

Hotel Mode

Y

Game Mode

—

VIERA Link (HDMI CEC)

Y

Suppliers Trademark

Panasonic

Model ID

TX-40DS500E

Energy Efficiency Class

A+

Visible Screen Size (diagonal)

100 cm

On mode Average Power Consumption*8

42 W

Annual Energy Consumption*9

59kWh

Standby Power Consumption

0.20 W

Off mode Power Consumption

0.20 W

Power Supply

AC 220 - 240 V, 50/60 Hz

Rated Power Consumption

54W

Ambient Sensor (CATS)

Y

Design Concept

—

Digital Tuner Reception

DVB-T/T2/DVB-C

Analogue Tuner

Y

HDMI

2 (rear)

HDMI (4K 60/50p with HDCP2.2)

—

Support Feature

Audio Return Channel (Input 2)

USB

1 (side; USB 2.0 x 1)

LAN Port

1 (rear)

CI (Common Interface)

1 (CI Plus, Version 1.3)

SD Card

—

Scart Connector

1 (rear)

Component Video Input shared with Composite

RCA phono type x 1 (rear)

Digital Audio Output (Optical)

1 (rear)

Headphone Output

1 (side)

Included Accessory*10

TV Remote

Dimensions (W x H x D) (w/o stand)

904 x 518 x 47 mm

Dimensions (W x H x D) (with stand)*13

904 x 567 x 194 mm

Weight (w/o stand)

10.5 kg

Weight (with stand)

12.5 kg

VESA Compatible

Y

VESA Dimension

200 x 200

Outer Boxed Unit (W x H x D)

1302 x 647 x 115 mm

Total Boxed Weight

15.0 kg

NOTE

*1 ST2084 and ST2086 SMPTE standards *2 Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. *3 Viewable contents may vary depend on regions and services. *4 Due to network conditions or certain broadcaster restrictions, this function may not be available. *5 The Web Browser cannot display some web pages correctly. And viewable contents by VIERA Web Browser are subject to the following conditions; - viewable contents may vary depend on models, - viewable contents may differ from those for PC, - viewable contents may be limited. *6 HID (Human Interface Device Profile) compliant keyboards are available. *7 aptX® software is copyright CSR plc or its group companies. All rights reserved. The aptX® mark and the aptX logo are trademarks of CSR plc or one of its group companies and may be registered in one or more jurisdictions. *8 Based on IEC 62087 Ed.2 measurement method. *9 Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. *10 Not all the accessories are listed here. *11 27 Languages (English / German / Italian / Spanish / French / Danish /Finnish / Swedish / Dutch / Hungarian / Czech / Romanian / Bulgarian / Polish / Norwegian / Estonian / Latvian / Lithuanian / Portuguese / Turkish / Greek / Croatian / Slovak / Slovenian / Serbian / Russian / Macedonian) *12 A2DP (Advanced Audio Distribution Profile) compliant audio devices are available. *13 Dimension with recommended pedestal style.

Tipas	LED LCD
Ekrano įstrižainė	40" (102 cm)
Ekrano raiška	FULL HD (1920x1080)
Skleistinės dažnis	400 Hz
3D funkcija	Nėra
Smart TV	Yra
Wi-Fi funkcija	Yra
LAN jungtis	Yra
USB jungtis	1

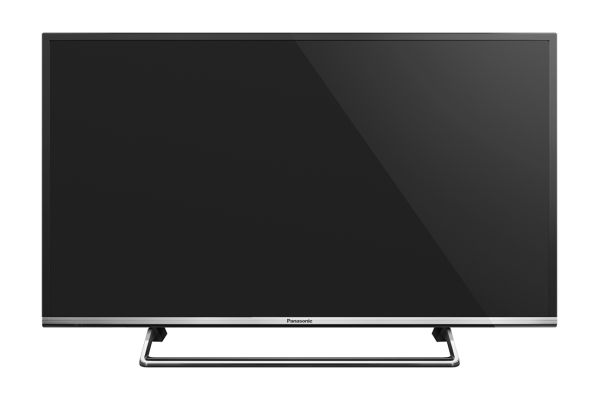

Televizorius Panasonic TX-40DS500E

Atsiimk nemokamai

Atsiimk per 2 val.

Greitas pristatymas

Technikos taisykla

UAB Mikrodelta - oficialus Panasonic atstovas Lietuvoje

APIE MIKRODELTA

INFORMACIJA

PAGALBA

Display
Panel	LED LCD
Bright Panel	Bright Panel
Screen Resolution	1,920 (W) x 1,080 (H)
Panel Drive	400 Hz BMR
Picture Mode	Dynamic/Normal/Cinema/True Cinema/Custom
HDR*1	—
Contrast	Hight Contrast
Colour Space	—
4K Studio Master HCX+/HCX	—
Local Dimming	—
Adaptive Backlight Dimming	Y
THX Certified Display	—
4K Pure Direct	—
isf Mode	—
3D	—
Sound Quality
Surround	V-Audio
Speakers	Full Range x 2
Speaker Output	20 W (10 W x 2)
Dolby Audio*2	Y
Sound Mode	Standard/Music/Speech/User
Smart Features
my Home Screen	Y
Info Frame	—
my Stream*3	—
Voice Assistant
Voice Assistant	—
Voice Guidance	Y
EPG	Y
On Screen Display Menu Languages	27 Languages*11
Twin HD Tuner / HD Triple Tuner	— / —
Unique Processing Engine	—
Wireless LAN Built-in	Y
Panasonic Media Center (App)
Panasonic Media Center (App)	—
TV Anywhere*4	—
In-House TV Streaming	Y (Client)
Panasonic TV Remote Apps
Panasonic TV Remote Apps	Y
Swipe & Share	Y
Smart Calibration	—
Internet Apps
Internet Apps	Y
Web Browser*5	Y
Easy Mirroring	Y
DLNA	Y (RUI2.0/DTCP-IP/DMP/DMR/DMS)
Bluetooth*6	—
APT-X*7	—
Media Player
Media Player	Y
Support Format	AVI/MKV/WMV/MP4/M4v/FLV/3GPP/VRO/VOB/TS/PS, MP3/AAC/WMA Pro/FLAC/WAV, JPEG
HbbTV	Y
Teletext Reception	1000P
USB-HDD Recording (w/ Rewind live TV)	—
Multi Window	PAT
Hotel Mode	Y
Game Mode	—
VIERA Link (HDMI CEC)	Y
Energy Data
Suppliers Trademark	Panasonic
Model ID	TX-40DS500E
Energy Efficiency Class	A+
Visible Screen Size (diagonal)	100 cm
On mode Average Power Consumption*8	42 W
Annual Energy Consumption*9	59kWh
Standby Power Consumption	0.20 W
Off mode Power Consumption	0.20 W
Power Supply	AC 220 - 240 V, 50/60 Hz
Rated Power Consumption	54W
Ambient Sensor (CATS)	Y
Design
Design Concept	—
Terminal
Digital Tuner Reception	DVB-T/T2/DVB-C
Analogue Tuner	Y
HDMI
HDMI	2 (rear)
HDMI (4K 60/50p with HDCP2.2)	—
Support Feature	Audio Return Channel (Input 2)
USB	1 (side; USB 2.0 x 1)
LAN Port	1 (rear)
CI (Common Interface)	1 (CI Plus, Version 1.3)
SD Card	—
Scart Connector	1 (rear)
Component Video Input shared with Composite	RCA phono type x 1 (rear)
Digital Audio Output (Optical)	1 (rear)
Headphone Output	1 (side)
GENERAL
Included Accessory*10	TV Remote
Dimensions (W x H x D) (w/o stand)	904 x 518 x 47 mm
Dimensions (W x H x D) (with stand)*13	904 x 567 x 194 mm
Weight (w/o stand)	10.5 kg
Weight (with stand)	12.5 kg
VESA Compatible	Y
VESA Dimension	200 x 200
Outer Boxed Unit (W x H x D)	1302 x 647 x 115 mm
Total Boxed Weight	15.0 kg
NOTE	1 ST2084 and ST2086 SMPTE standards 2 Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. 3 Viewable contents may vary depend on regions and services. 4 Due to network conditions or certain broadcaster restrictions, this function may not be available. 5 The Web Browser cannot display some web pages correctly. And viewable contents by VIERA Web Browser are subject to the following conditions; - viewable contents may vary depend on models, - viewable contents may differ from those for PC, - viewable contents may be limited. 6 HID (Human Interface Device Profile) compliant keyboards are available. 7 aptX® software is copyright CSR plc or its group companies. All rights reserved. The aptX® mark and the aptX logo are trademarks of CSR plc or one of its group companies and may be registered in one or more jurisdictions. 8 Based on IEC 62087 Ed.2 measurement method. 9 Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. 10 Not all the accessories are listed here. 11 27 Languages (English / German / Italian / Spanish / French / Danish /Finnish / Swedish / Dutch / Hungarian / Czech / Romanian / Bulgarian / Polish / Norwegian / Estonian / Latvian / Lithuanian / Portuguese / Turkish / Greek / Croatian / Slovak / Slovenian / Serbian / Russian / Macedonian) 12 A2DP (Advanced Audio Distribution Profile) compliant audio devices are available. *13 Dimension with recommended pedestal style.
