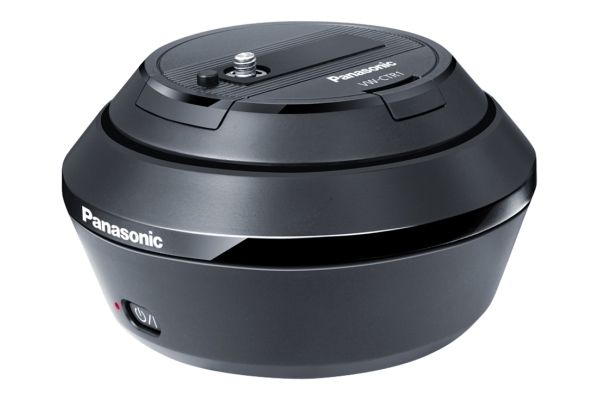

VW-CTR1E-K Panasonic valdomas stovas VW-CTR1

GENERAL SECTION


Power Supply	5.0 V (AC Adaptor) 3.0 V (LR6/AA Alkaline dry Batteries x 2) 2.4 V (HR6/AA Rechargeable nickel metal hydride batteries x 2)
Power Consumption	1.4 W (When the unit is performing panning/tilting operation)
Dimensions (W x H x D)	Approx. 129.6 x 72.0 x 129.6 mm (5.10 x 2.83 x 5.10 inch)
Weight (w/o battery)	Approx. 340 g (0.750 lb)
Continuous Operating Time*	Approx. 170 min (When using LR6/AA Alkaline dry batteries) Approx. 240 min (When using HR6/AA Rechargeable nickel metal hydride batteries (Ni-MH)
Panning/tilting angles	Panning: 352° (±176°), Tilting: 30° (±15°)
Interface
USB	Standard-A port (for controlling from a connected video camera)
DC IN	Micro-USB port (for supplying power)
LED	Power LED
Operating temperature/humidity
When the unit is stored:	-10°C to 60°C (14°F to 140°F) /0%RH to 90%RH
When the unit is in use:	0°C to 40°C (32°F to 104°F)/ 10%RH to 80%R
Tripod receptacle	Yes
AC Adaptor	Yes
USB Cable	Yes (for Power Supply)
Mounting Plate	Yes
NOTE	*Depending on the conditions of use, the continuous operating time varies. Specifications are subject to change without notice.

Papildomai
Gamintojas	Panasonic

Valdomas stovas Panasonic VW-CTR1E-K
